Since the announcement of these 21" cars by Lionel, I've been eyeing them and hoping they would be accurate enough to use for my Southern train. As seen by my earlier preliminary post, the cars they decided to do were a hodgepodge of mixed ancestry and somewhat unique cars that I knew they'd never get right.
I finally had the chance to see the tooling up close at Fall York 2015. After learning that the first 4 sets of cars are all based off of NYC-Empire State Express tooling, I then decided to see if it was worth re-using the ends, interior, underframe, etc. to make my own cars using Union Station Product Styrene sides. Below are my photos, analysis, and my decision...
Really nicely done ends. They come in full-width and non-full-width. Off to a good start.
Here is a general image of how the fluting looks to be more or less correct, including the skirting. This particular car has windows that use up the entire gap between the fluting. Southern (and also other roads) had cars that had slightly smaller windows.
Personally, Lionel is making brand new tooling...I can't believe the kinds of mistakes (not really concessions IMO) they're making on these cars. They're trying to sell to an audience that cares about this kind of stuff...they shouldn't be able to get away with these kinds of mistakes. They fix the windows and screw up the ride height. I don't want the cars to hurt Lionel financially, but they're doing an injustice to consumers, but since the cars come in an orange box, I bet modelers will just eat them up regardless. It's a shame because Lionel obviously has a talented staff that can make the rest of the car look really amazing, yet someone screwed up on something really obvious.

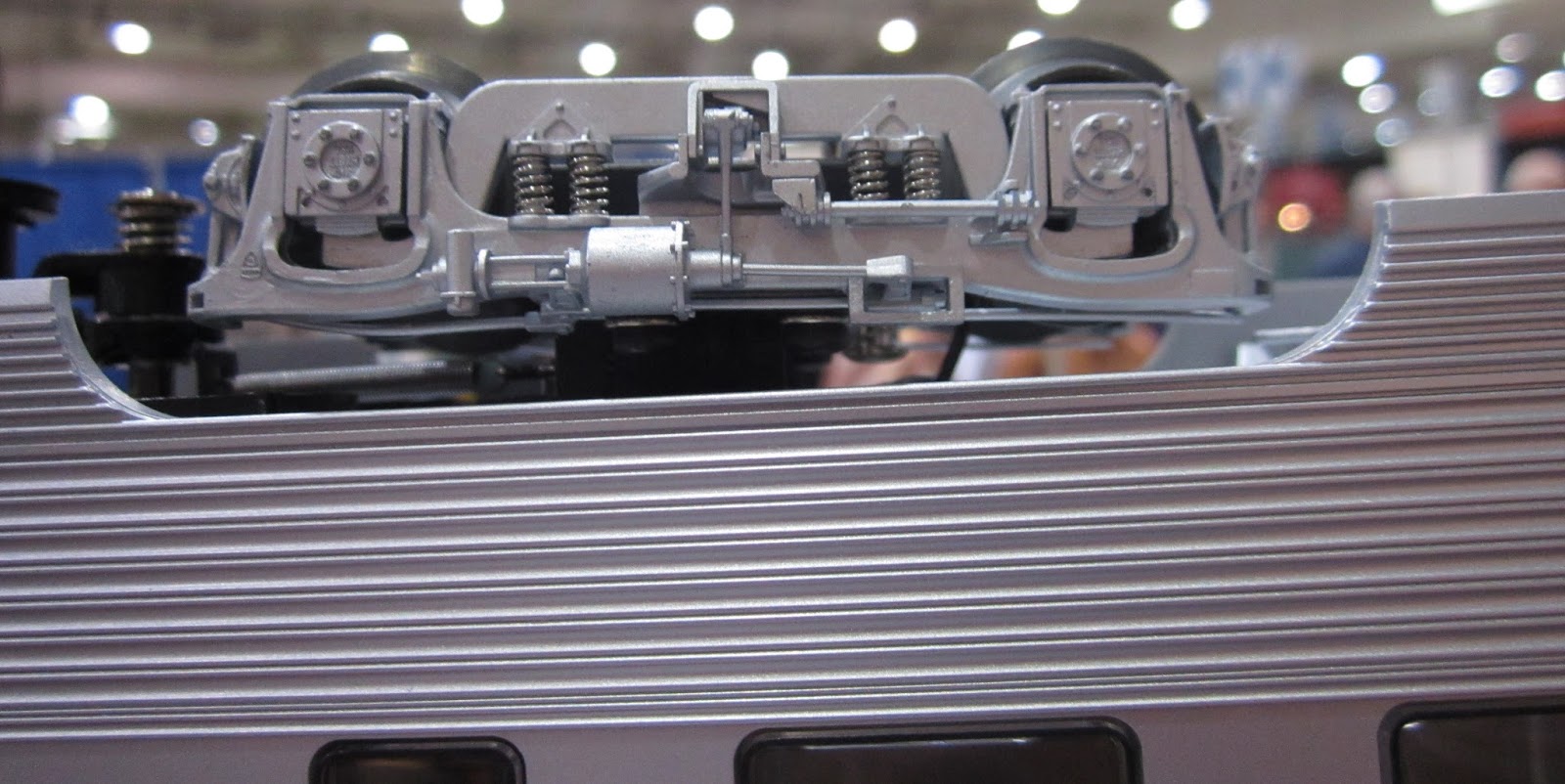

Since I would have to swap wheels for 2R wheels anyway, I went to investigate if I could fix the height issue. I think it is possible. See the two screws on the inside of the truck? There are 2 more on the other side and these hold the truck to a bolster that I believe could be replaced with a brass piece that would allow the trucks to sit lower. However, the way Lionel did their couplers, I think this will be difficult unless modelers go to Kadee couplers...
They're using those Kinematic couplers again. Nice design except for the spring that you can easily see in the center. The problem is that it uses the entire space and appears to be the reason why the cars are so highwater. Again, I think if folks can afford to go to kadees on these, they might be ok. (Even if you truck-mount the kadees...since you're going to have to make new mounts anyway to fix the ride height issue.)
Again, windows, fluting, all done really nice. However, Lionel likes to use these giant rivets in alot of their cars. (PS-4 flats, 40' flats, boxcar running boards, etc.) The letterboards have these unsightly and unprototypical rivets on them. I assume it makes them more durable over time, but I don't get why they just don't glue them on. It matches the prototype better, can be repaired if they do fall off at some point.
So here's more on the windows. They're flush mounted and have the black gaskets. They look extremely good on these cars. What a shame they don't make accurate sides for every road name. The guy at Lionel said they were going to have accurate sides as much as they could moving forward, especially for the UP (excursion?) train coming out soon. There may be some other designs that will come along over time...ok cool, but doesn't help me here.
To be honest, I'm not a passenger car underframe expert. There is a lot of random compressors, condensers, battery boxes, etc. and I don't really know what's correct, though I could sit with some of my books and start pointing out whats right and wrong. I will start to learn though...Rapido Trains has a good page on this stuff: http://rapidotrains.com/budddetail.html I bet some think the same when it comes to window/door arrangements, fluting, etc. on the rest of these cars, but those are spotting features, which are features that make a particular car, loco, etc. unique and distinguishable from another besides their reporting marks. While the majority of these underframe items face the track, they can still be seen when looking at the cars from the side, and sometimes count as part of those spotting features. In any case, these cars look to be really nice and even have a switch to turn the LED lighting on and off.
I don't have any photo's of the interior, but the interiors looked really nice when I asked Mike Reagan to open a car so I could see inside. However, they will come unpainted and without passengers. Not a deal breaker to me, but that could be quite a bit of work to some of those out there who want that to be done already. The LED lighting already set up inside was a plus to me, but I can make my own pretty easily.
I also think the paint they're using matches the prototype relatively well. No complaints there, but since I'd have to redo the sides, I didn't care that much.
So...considering street price at about $100/car to just reuse the bare bones and with what I've seen, I am not going to buy these for that purpose. I think fixing the ride height is a lot more work than its worth. I would paying for a lot of things that I can't reuse (Lionel won't sell interiors, so I can't even mix and match interiors to get close enough patterns), and probably couldn't resell for very much. This leaving me some options, in order of preference:
- Continue to badger 3rd Rail to make a Southern Crescent. I think there is enough market to sell an accurate train to the market, especially after Lionel's poor cookie-cutter attempt here.
- Take some other secondary market 2R offerings at a cheaper price (Weaver 21" Kline 21" etc) and use those as my base to build up nice cars.
- Wait to see if Lionel improves their cars and use future offerings as my base.
- Make my own entirely from scratch...something I was hoping not to do.
To those getting these cars for the NYC ESE, congrats...they will look really nice once you fix the ride height issues, paint the interiors, and add figures, but I really think fixing the ride height consistently across a whole train is going to eat up a lot of time. I hope Lionel learns from these early 21" car mistakes and makes a product that folks want. For the mean time, I think 3rd Rail and AtlasO still have plenty of room to continue making 21" cars, especially if they make accurate cars per railroad.
As a side note...took a look at Rapido Trains to see how detailed their cars are in comparison, how good their stainless steel looks, etc. Sadly, O-scale still needs a Rapido-like company. They are truly the best passenger car company. (in HO and N) For $109, these cars BLOW out anything seen in O-scale, even 3rd Rail. They pay attention to every detail...shades at different heights, painted interiors, extremely detailed underframe detail, lots of end-car details, etc. I'd gladly pay double (O is double the size and double the price right?) These cars truly rival exquisite brass in finish and in detail. It's a shame. Don't believe me? See here (Scroll down and click on images): http://rapidotrains.com/budd1.html
Good Review. Except for the fact that the Lionel ESE NYC Obs car is totally wrong. Which makes the set a total disaster. If there is one car in a set that you must get right is the tail end car. The obs end on the Lionel ESE is totally wrong, and looks like an SP car. Plus, the set looks nothing like Stainless steel.
ReplyDeleteAs to the correctness of the ESE Obs...now that I look at pictures, yes, you're right. Lionel appears to have messed up big time on the end of the car. Even MTH's HO attempt got it pretty close. Good thing I no longer model NYC.
DeleteI thought the SS paint wasn't that bad in person, but Rapido definitely has a better method.
Yup...don't know who Lionel has designing this stuff...they need to run their designs past true modelers, so they avoid this. Majority of people are gonna let it slide though, a real shame for the consumer.
